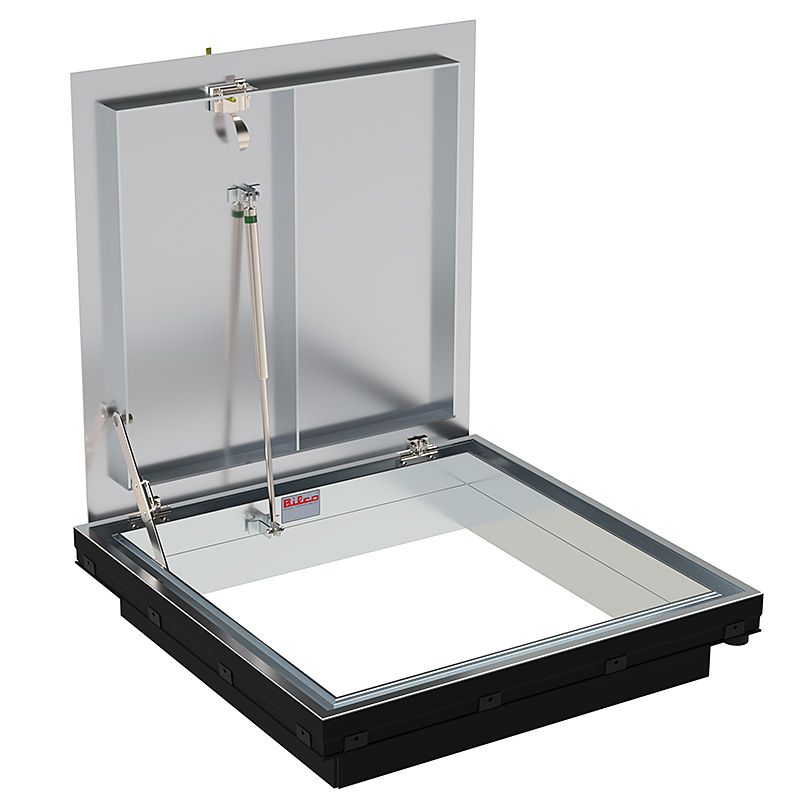

Floor Access Door Models

Type PV (300 PSF), Type PV-H20

Standard Features and Benefits

• Supplied in frame heights for fast and easy installation in precast concrete vaults.
• Standard Type 316 Stainless Steel Hardware
• Engineered with lift assistance for smooth, easy one-hand door operation
• Automatic hold-open arm locks the cover in the open position to ensure safe egress
• Constructed with corrosion resistant materials to provide many years of trouble free, dependable service
• Heavy-duty construction and positive latching mechanism help to prevent unauthorized access
• Exclusive 25-year warranty

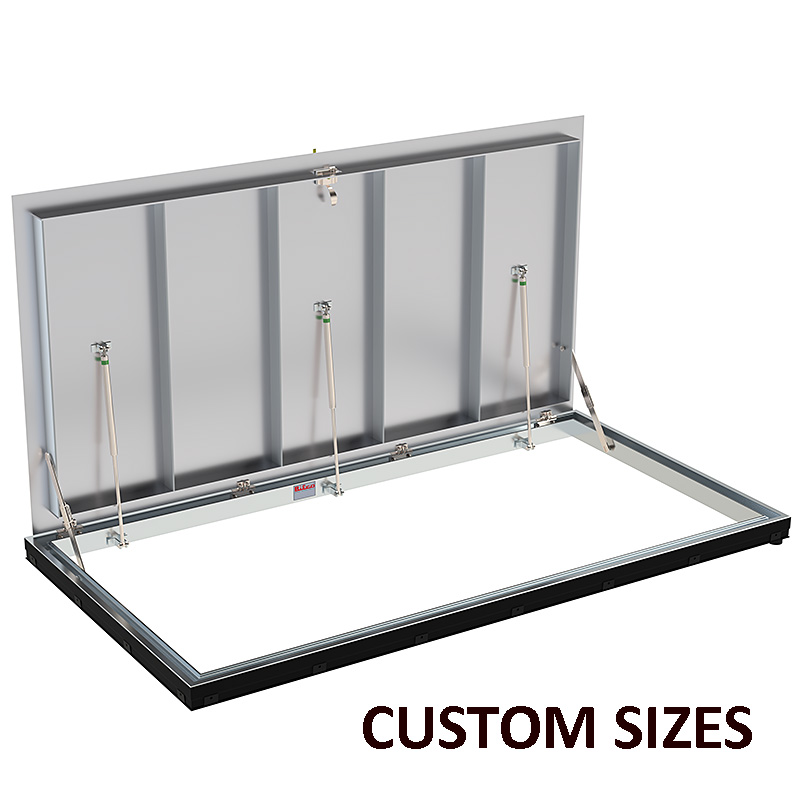

• Available in a number of standard and special sizes to satisfy any requirement


Guide Specifications

• Material: 1/4" (6mm) aluminum cover and extruded aluminum frame.

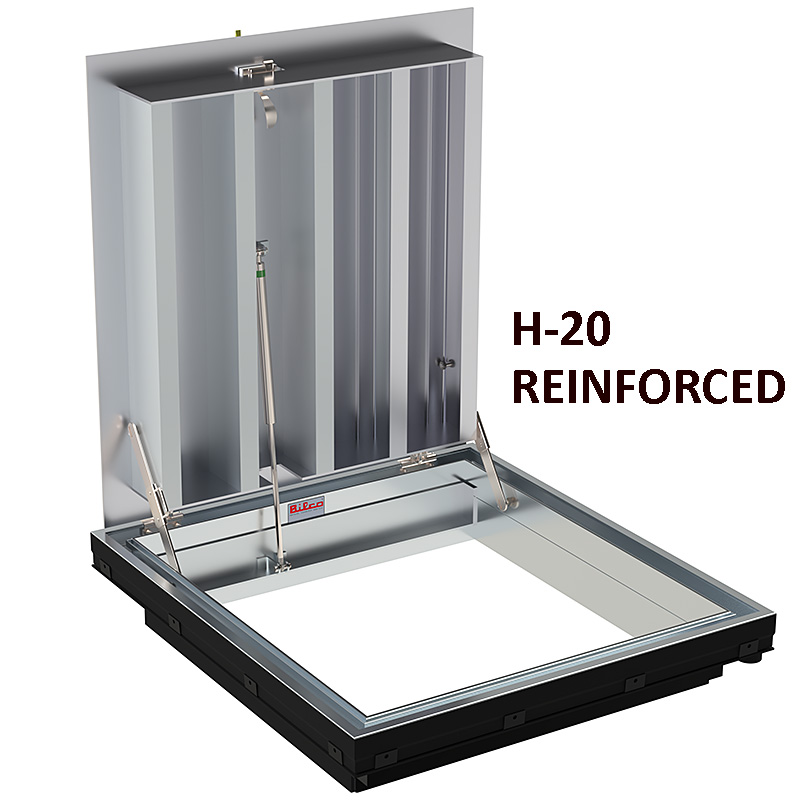

• Cover: Diamond-pattern tread plate reinforced for 300 psf (1464 kg/m2) live load or H-20 wheel loading (Designed for installation in off street locations where the door is not subjected to high density, fast moving traffic. Structural calculations available upon requested).

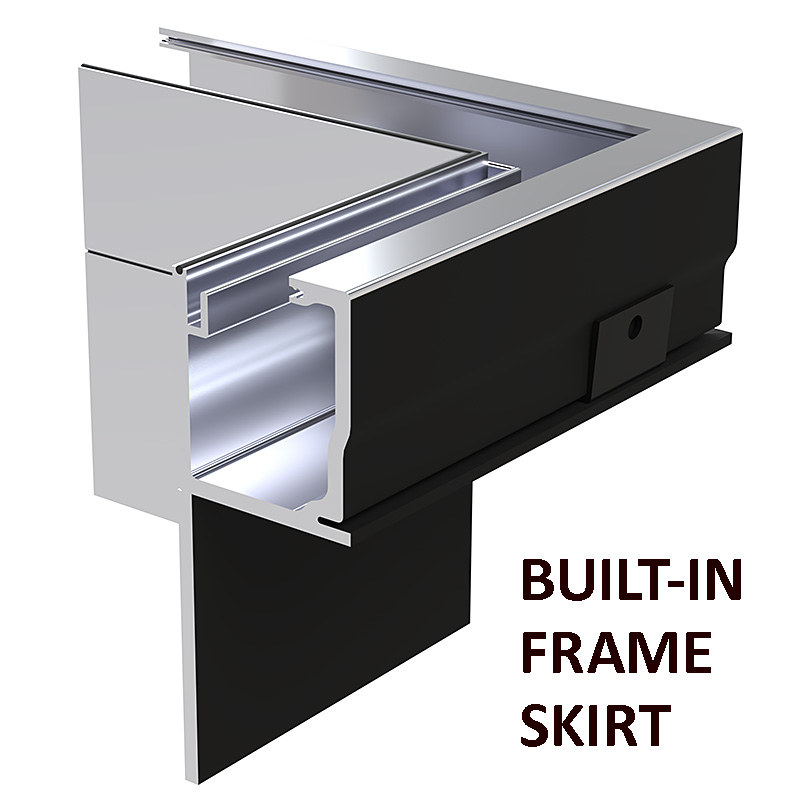

• Frame: Extruded aluminum channel frame with built-in skirt for precast installation (specify slab thickness) and bend down anchor tabs around the perimeter. A 1-1/2" (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system.
• Hinges: Heavy forged Type 316 stainless steel hinges with 1/4" (6 mm) type 316 stainless steel hinge pins
• Latch: Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug
• Lift Assistance: Gas spring lift assistance. Automatic hold-open arm with release handle automatically locks the cover in the open position.
• Finish: Mill Finish aluminum with a bituminous coating applied to the exterior of the frame
• Hardware: Type 316 stainless steel throughout

•
•
•
•
